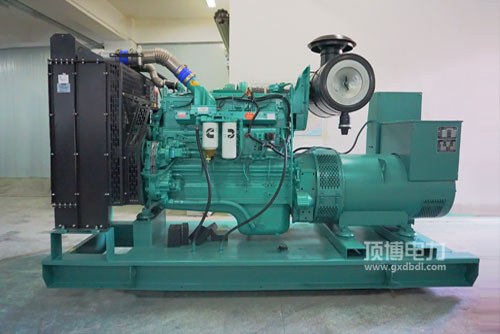

224-310KW康明斯发电用发动机可靠性高：高强度合金铸造缸体、可锻铸铁(FCD) 活塞，刚性更好，降低振动和噪声，提高了发动机适应更高的爆发压力。

High reliability: intensified alloy casting cylinder and Ferrous Cast Ductile (FCD) piston provide engine a better rigidity performance and lower vibration & noise, and also make the engine adapt to higher explosion pressure.

康明斯火力发电用打着机柴油经济增长性好: 优秀的柴油操作制定，独到的STC、ESTC 分级分类操作制定，专项 制定的火塞顶端复燃室，压力发射柴油，充沛雾化吸入，复燃充沛。

Good fuel economy: Advanced fuel control system, unique STC, ESTC step control system, specilly-designed piston topchamber and high pressure fuel injection lead to an excellent fuel consumption rate and emission performance of engine.

康明斯发电厂用启驱力瞬态耐热性表现出色: 非凡的启驱力整体布局构思，匹配康明斯独具特色的EFC软件，把握精密度更高，反应的时间快。

Excellent transient performance: perfect overall engine design with unique Cummins EFC system, high precision on control and quick response time.

康明斯带发电用打火机升输出高: 整体风格制作紧密.外观简约时尚摆放适度，运转平衡。High lift power: Integrated and compact design, reasonable layout and smooth operation.

电喷仪器 QSNT. QSK19. QSK38. QSK50提供中国国家非路段第三点步骤及北美洲Tier2. Tier 3排放口法律规范条件。

Electric fuel injection engines (QSNT,QSK19,QSK38,QSK50) meet the Tier3 emission regulations for China non-road vehicles and Tier2 & Tier3 emission regulations of North America.

零维修工具可获得性好， 热车机执行及运维维养方便，成本费低。Good availbility of spare parts, smooth engine operation, convenient engine maintenance and low cost.

发动机规格Engine Specifications

额定功率区域 Power Range   224-310KW形式 Type   直列/六缸/四冲程/四气门  In-ine/6-Cylinder/4-Stroke/4-Valve缸径x冲程 BoreX Stroke  125X 147mm排量 Displacement   11L外型规格 Dimension  长X宽X高(LXWX H) 1360 x 833X 1068 mm净服务质量 Dry Weight   940kg

224-310KW康明斯电站用汽车发思想的特质：体积大小小， 解压缩比低， 隔栅空气当中进行加热，方便打火，手机车机电的好的选择。Compact size, high compression ratio, gile heated by air, easy for start-up, the first option of mobile vehicle power supply.

推荐机型Engine Models Recommended

启行为款型	常见电机功率(kW)Prime Power	预留热效率kW)Standby Power
MTA11-G2	224	246
MTAA11-G3	282	310
